Product Overview

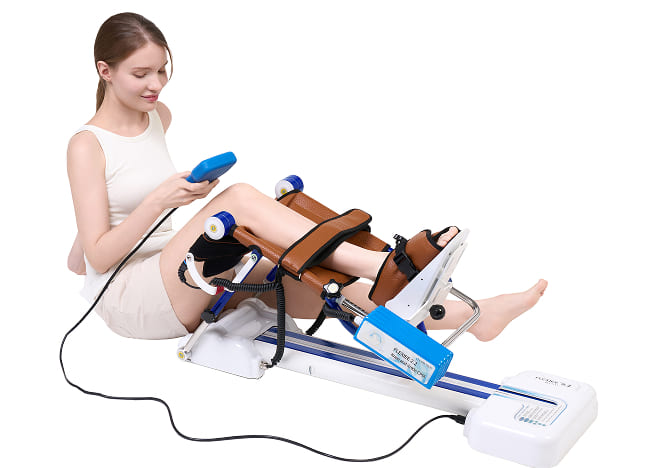

- FLEXIEE 2.2 is a motorized Continuous Passive Motion (CPM) device designed to facilitate knee rehabilitation by prioritizing ankle motion therapy during the early stages of recovery. The system supports independent as well as simultaneous CPM therapy for both the knee and ankle joints.
- Built on CARETECH's more than 20 years of expertise in rehabilitation technology, FLEXIEE 2.2 combines clinical insight, advanced engineering, and customer-driven innovation to provide effective and personalized rehabilitation solutions.
- Wide range of motion (ROM) from -10° to 150°
- Independent or simultaneous CPM therapy for the knee and ankle joints
- Multiple therapy protocols for personalized rehabilitation programs
- Adjustable foot support with vertical and lateral positioning to accommodate different foot shapes and patient needs
- Designed to minimize operating noise, ensuring a comfortable and patient-friendly therapy environment.
Key Features
Dual-Joint RehabilitationEnables independent or simultaneous CPM therapy for both the knee and ankle joints, supporting comprehensive rehabilitation throughout the recovery process.
Space-Efficient DesignWith an overall length of just 97 cm, the device fits safely on hospital beds and offers enhanced convenience for home-based rehabilitation.
Knee Mode
Ankle Mode
Combo Mode
EXTENSION : -10º
FLEXION : 150º
Product Usage Videos
Technical Specifications
Range of Motion | Knee : -10°~ 150° Ankle : 60°~ 0°~ 40° |
|---|---|
Exercise Mode | Normal/Vibration Progress/Limited Pause |
Speed | 7 Steps |
Timer | 0~60 (Min) |
Weight | 15 (kg) |
Dimension | 33 × 96 (cm) |
Rated Voltage | 100~240 (VAC) |
Rated Frequency | 50/60 (Hz) |
Power Consumption | 75 (VA) |
Electric Safety Class | Class 1, Type B |
